Kwikstage Standard

Download: PARAMETERS PDF

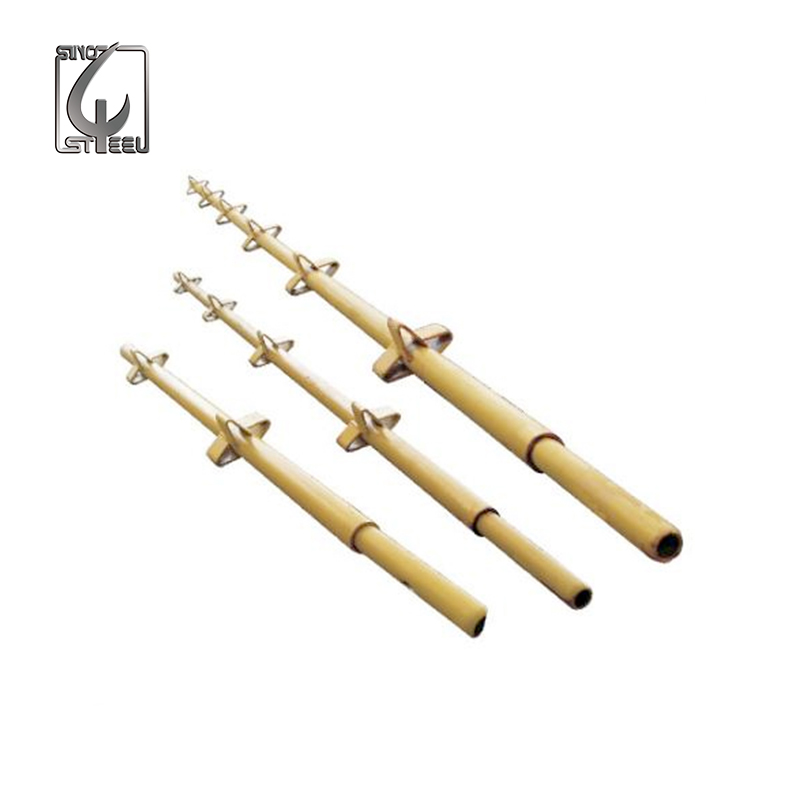

1. The scaffolding standard is a vertical member of scaffolding and provides the vertical support.

2. The connections are placed at fixed increments of 0.5m to provide vertical support when attaching horizontal ledgers and diagonal Braces.

3. Normally standard vertical is made with Φ48.3x3.25mm scaffolding tube, also can do it as per customers’ requirement.


PRODUCT DETAIL

The ringlock scaffolding standard is a vertical member of ringlock scaffolding and provides the vertical support. The ring are placed at fixed increments of 0.5m to provide vertical support when attaching horizontal ledgers and diagonal Braces. Normally our standard vertical is made with Φ48.3x3.25mm scaffolding tube, also can do it as per customers’ requirement.

Length(mm)Diameter(mm)Thickness(mm)
300048.33.25
250048.33.25
200048.33.25
150048.33.25
100048.33.25


ringlock


cuplock


kwikstage
