Cuplock System

Download: PARAMETERS PDF

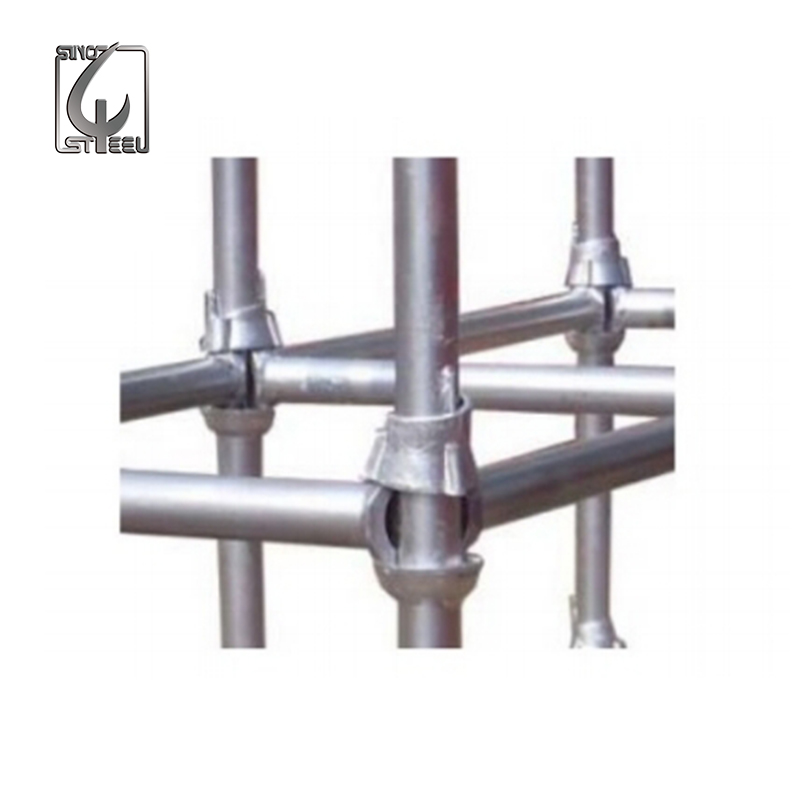

  Cuplock Scaffolding System use for building bridges and engineering construction

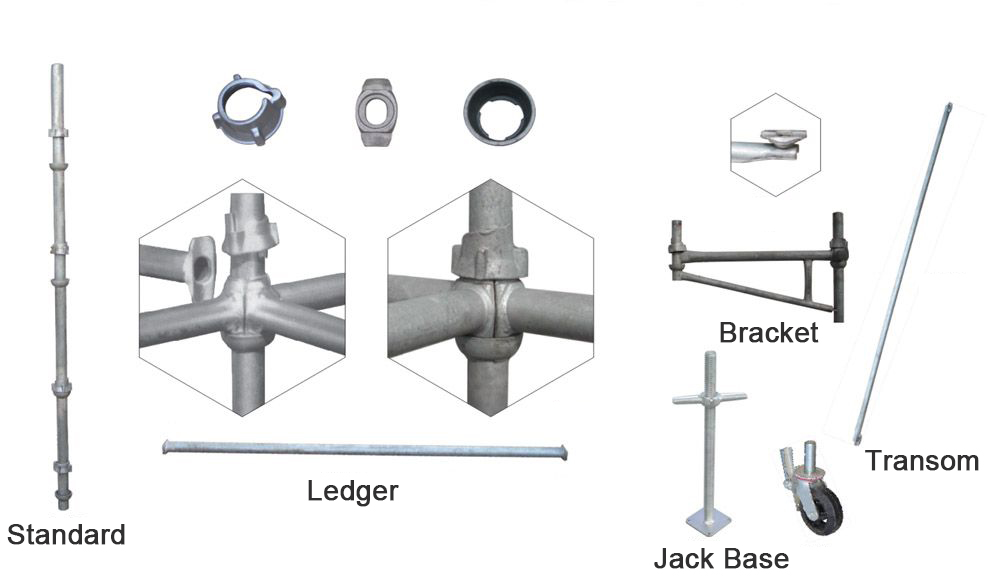

 1.One set of Cuplock Scaffolding usually include 4 standards and 8 ledgers.

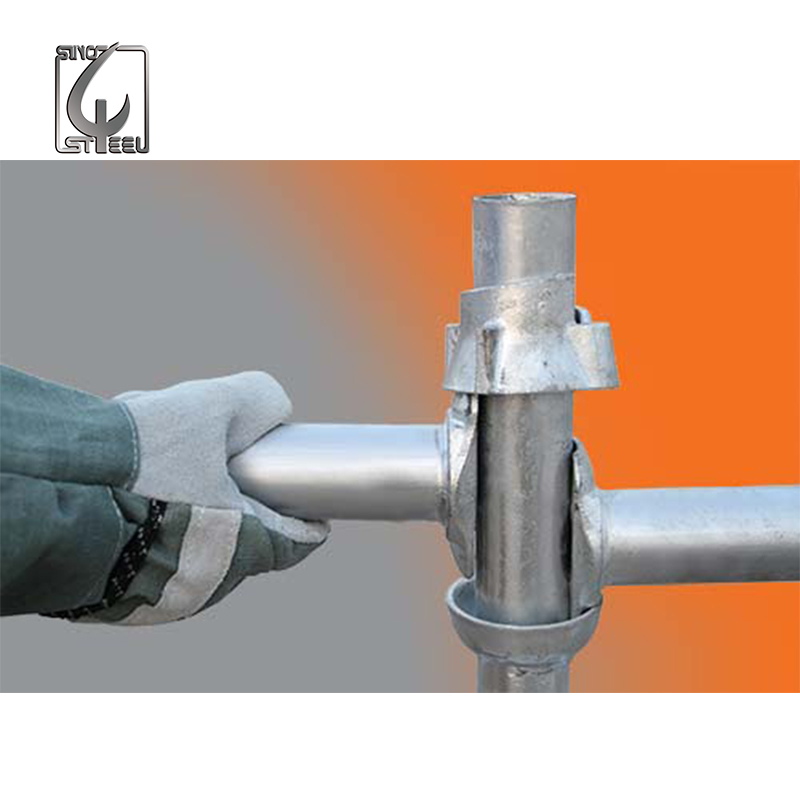

 2.Cuplock Scaffolding is easy and quick  to install and strip.which can save your time.

 3.Cuplock Scaffolding provides high loading capacity while its structure is quite flexible.

 4.All the Cuplock Scaffolding parts are dealt with CO2 arc welding, the surface is galvanized. As a result, it is more durable and has a longer working life

 5.There is small lock pin on Cuplock verticals to restrict the cups from moving out. so you don't worry to lost ancillaries

PRODUCT DETAIL

Cuplock Scaffolding System use for building bridges and engineering construction

1.One set of Cuplock Scaffolding usually include 4 standards and 8 ledgers.

2.Cuplock Scaffolding is easy and quick  to install and strip.which can save your time.

3.Cuplock Scaffolding provides high loading capacity while its structure is quite flexible.

4.All the Cuplock Scaffolding parts are dealt with CO2 arc welding, the surface is galvanized. As a result,

it is more durable and has a longer working life

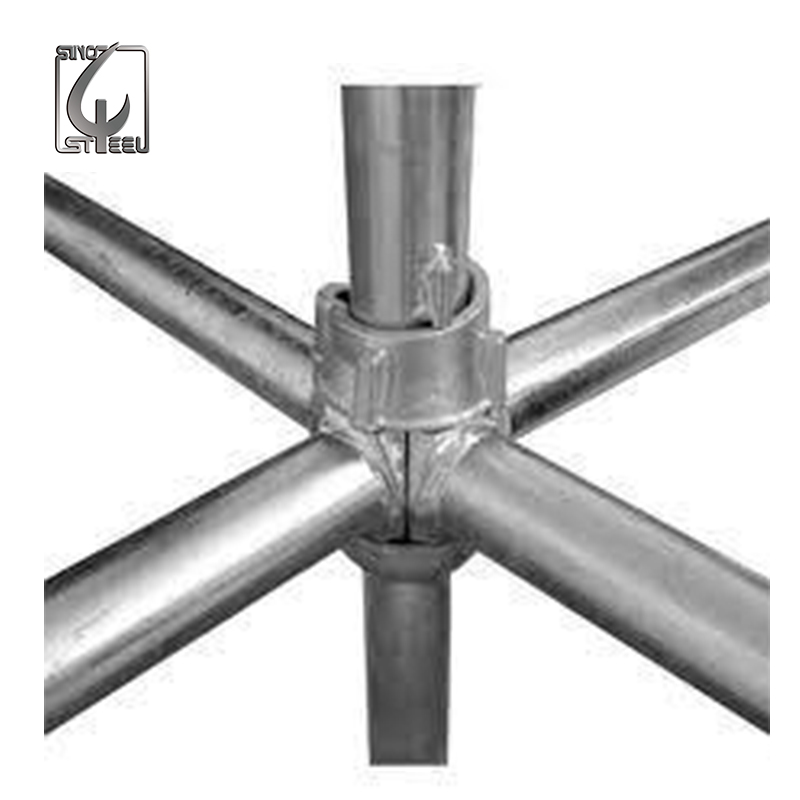

5.There is small lock pin on Cuplock verticals to restrict the cups from moving out.

so you don't worry to lost ancillaries


Standard

Product CodeSizeLengthWeightMaterial
SS-BM05048.3*3.2mm500mm3.5kgQ235/345
SS-BM10048.3*3.2mm1000mm6.3kgQ235/345
SS-BM15048.3*3.2mm1500mm9.0kgQ235/345
SS-BM20048.3*3.2mm2000mm11.8kgQ235/345
SS-BM25048.3*3.2mm2500mm14.5kgQ235/345
SS-BM30048.3*3.2mm3000mm17.3kgQ235/345

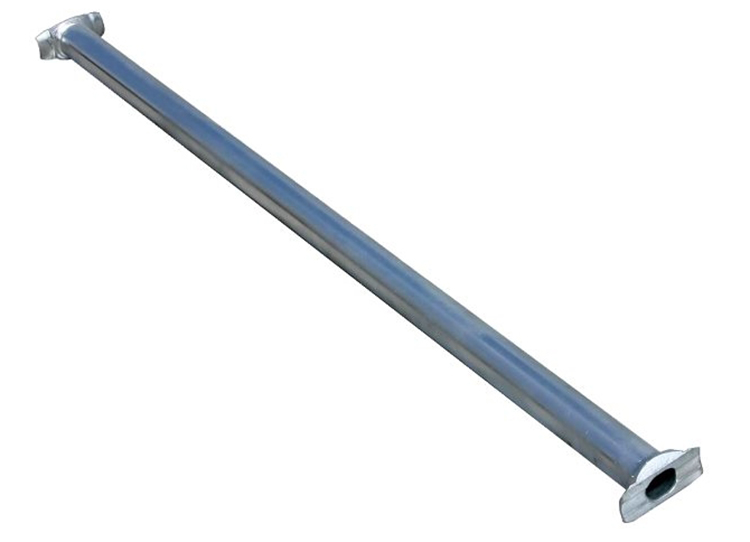

Ledger


Product CodeSizeLengthWeightMaterial
SS-BM03048.3*3.2mm914mm3.5kgQ235
SS-BM04048.3*3.2mm1219mm4.3kgQ235
SS-BM05048.3*3.2mm1524mm6.0kgQ235
SS-BM06048.3*3.2mm1829mm6.9kgQ235
SS-BM08048.3*3.2mm2438mm9.35kgQ235
SS-BM10048.3*3.2mm3048mm11.0kgQ235

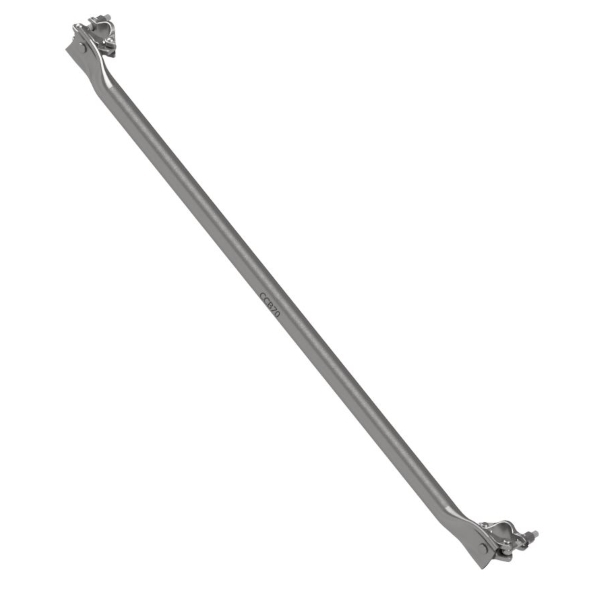

Item NumberLength(mm)Diameter(mm)Thickness(mm)Material
SS-BM25002500*200048.32.5Q235
SS-BM18001800*200048.32.5Q235
SS-BM13001300*200048.32.5Q235
