Frame Scaffolding5

Download: PARAMETERS PDF

Frame scaffolds are the most common type of scaffold because they are versatile, economical, and easy to use. They are frequently used in one or two tiers by residential contractors, painters, etc., but their modular frames can also be stacked several stories high for use on large-scale construction jobs.

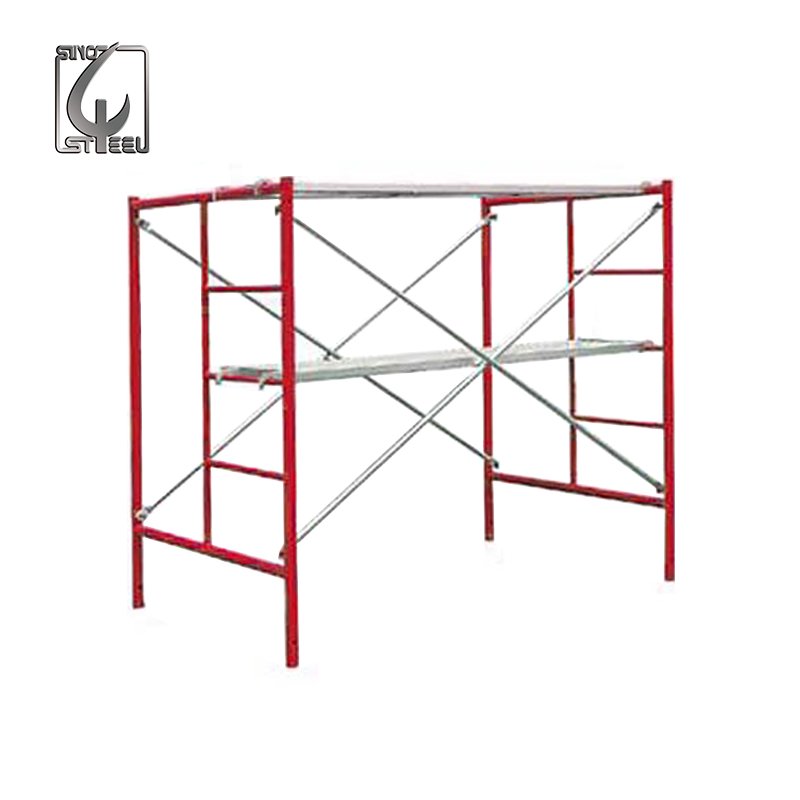

Main frame scaffolding (one set) usual include:Main frame,cross brace,catwalk,joint pin.


Other selection parts:staircas,caster wheel,Rail post,guardrail and adjustable level leg.


(1)This kind of scaffolding is mainly made of main frame, main pipe, sub-main pipe, cross brace and joint pin.


(2)The structure of the scaffolding is simple, so it is easy to assemble and disassemble.


(3) The scaffolding can be reused. Even though it is out of work, the material can also be recycled.


(4)Steel scaffolding can be adjusted when it is together used with the scaffolding jack base and U head.


PRODUCT DETAIL


ClassificationDescriptionSpecificationsTheoretical WeightMaterialSurface

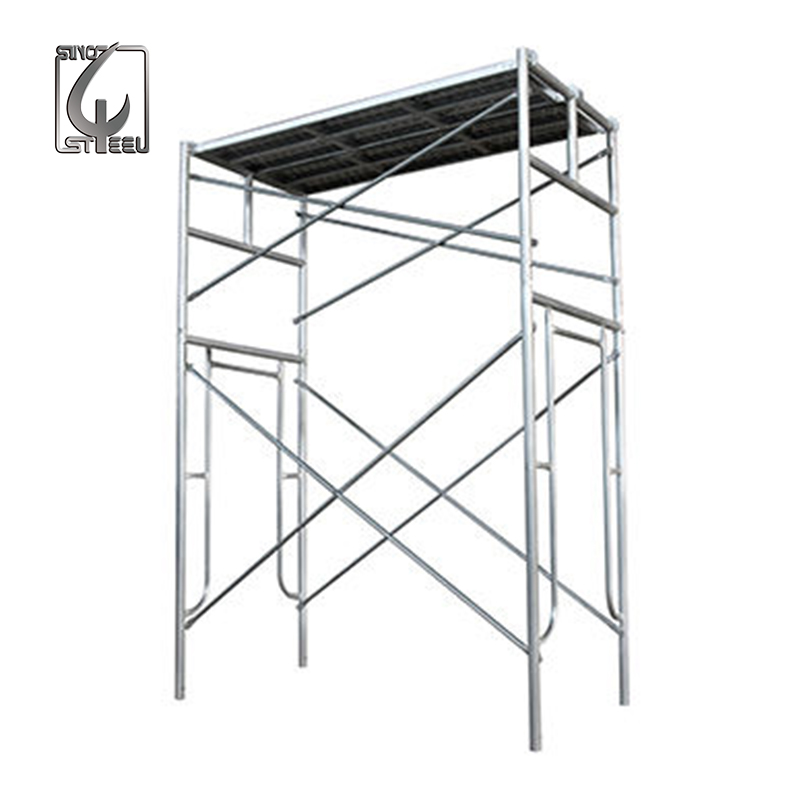

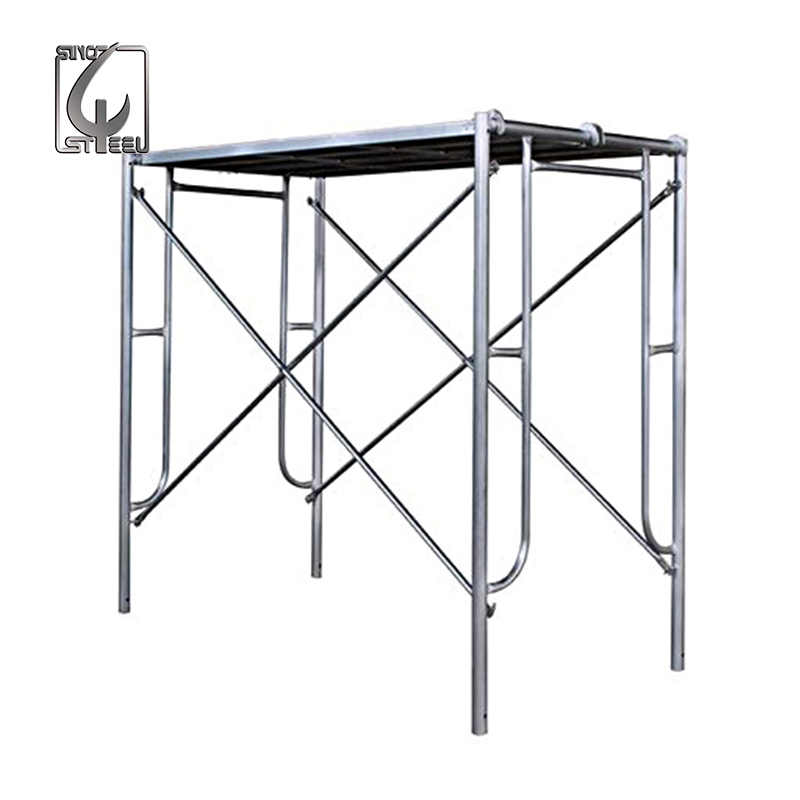

FramePortal frame1219x152410.5kgQ235Painted Eletro-galvanized Hot dip galvanized
Portal frame1219x170012.5kgQ235
Portal frame1219x193013.6kgQ235

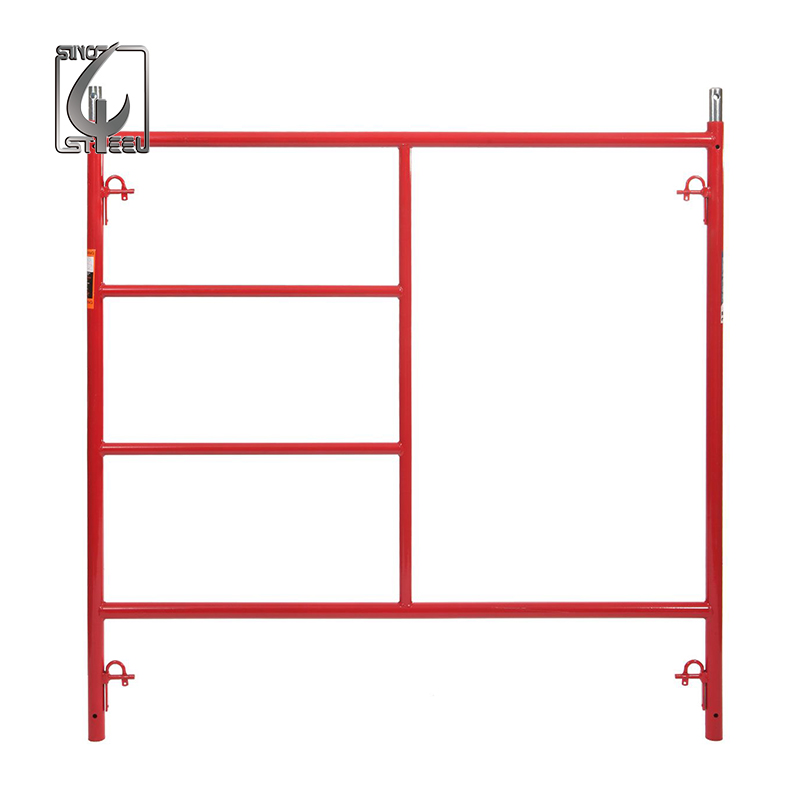

Ladder type frame1219x9146.7kgQ235
Ladder type frame1219x152411.2kgQ235
Ladder type frame1219x170012.3kgQ235
Ladder type frame1219x193014.6kgQ235
ClassificationSpecificationsTheoretical WeightMaterialSurface
Gross Brace21x1.4x13631.9kgQ235Painted   Eletro-galvanized   Hot dip galvanized
21x1.4x17242.35kgQ235
21x1.4x19282.67kgQ235
21x1.4x21983kgQ235
