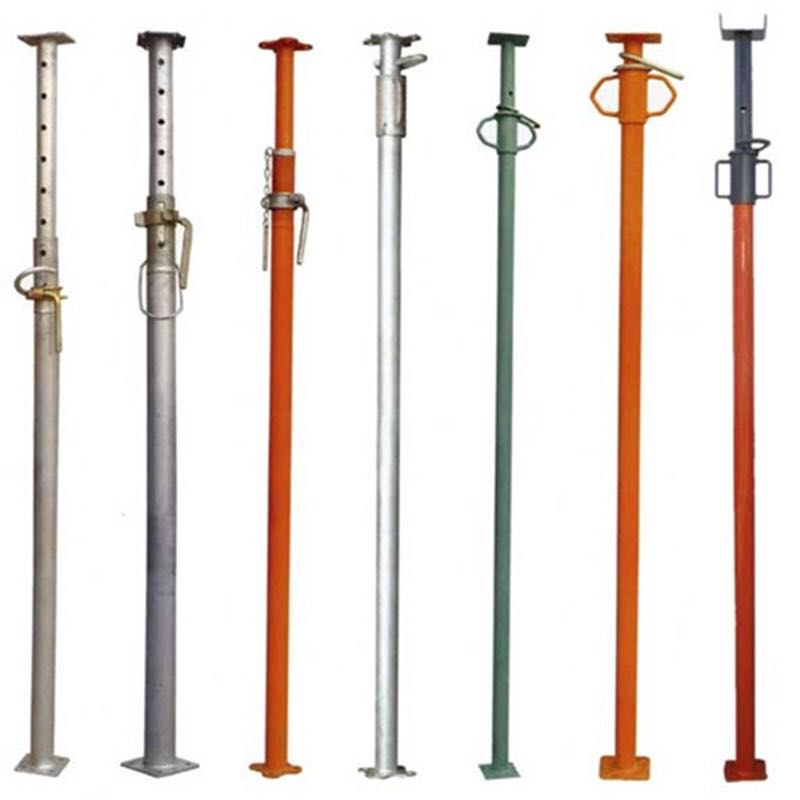

Shoring props

Download: PARAMETERS PDF

Outer Diameter:48mm--60mm; 48mm--56mm; 40mm--48mm;

Pope Thickness:1.5mm--3mm

Length:600mm--5000mm

Standard:GB, ANSI, ASME, ASTM, JIS, DIN, BS, EN

Material:Q195,Q235, Q345

Package:in pallets or in bundle or in bulk

Surface Treatment:painted, pre-galvanized, powder painted, hot dipped galvanized

Type:heavy duty or light duty

Application:slab or formwork supporting

Weight:4.74kg--30kg

Component:bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate


PRODUCT DETAIL

Italian Prop
Adjustable LengthOuter TubeInner TubeWall Thickness
1600-2900mm56mm48mm1.5-2.75mm
1800-3100mm
2000-3600mm
2200-4000mm
Surface TreatmentPainted,powder coated,electro galvanized or hot dip galvanized
Middle East or German Prop
Adjustable LengthOuter TubeInner TubeWall Thickness
1400-2700mm60.3mm48.3mm1.6-4.0mm
1600-2700mm
1620-2640mm
2000-3500mm
2200-4000mm
3000-5500mm
Surface TreatmentPainted,powder coated,electro galvanized or hot dip galvanized
Spain Prop
Adjustable LengthOuter TubeInner TubeWall Thickness
800-1400mm48mm40mm1.5-2.5mm
1600-3000mm
2000-3500mm
2200-4000mm
Surface TreatmentPainted,powder coated,electro galvanized or hot dip galvanized
Push Pull Prop
Adjustable LengthOuter TubeInner TubeWall Thickness
1400-2700mm60.3mm48.3mm1.6-4.0mm
1600-2700mm
1620-2640mm
2000-3500mm
2200-4000mm
3000-5500mm
Surface TreatmentPainted,powder coated,electro galvanized or hot dip galvanized
