Ringlock scaffolding

Download: PARAMETERS PDF

1.   Ringlock scaffolding is one of the most popular types of scaffolding systems in the world. As a modular scaffolding system, it is extremely versatile and can be erected from the ground up or suspended.

2.   Versatile in different heights and sizes,Ringlock Scaffolding can almost meet requirements of any constructions.

3.  The Ringlock scaffolding has a fleetly erection speed so that it save builder's time and labor cost.

4.  Ringlock scaffolding has reliable and durable welding part and precision cast components.

PRODUCT DETAIL

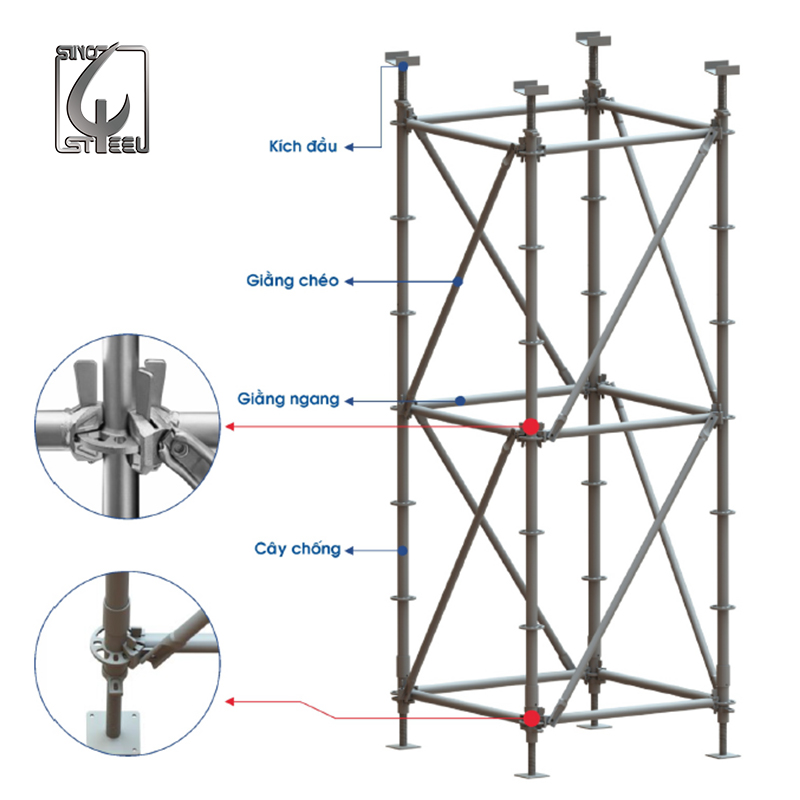

Ringlock scaffolding is one of the most popular types of scaffolding systems in the world.

As a modular scaffolding system, it is extremely versatile and can be erected from the ground up or suspended.

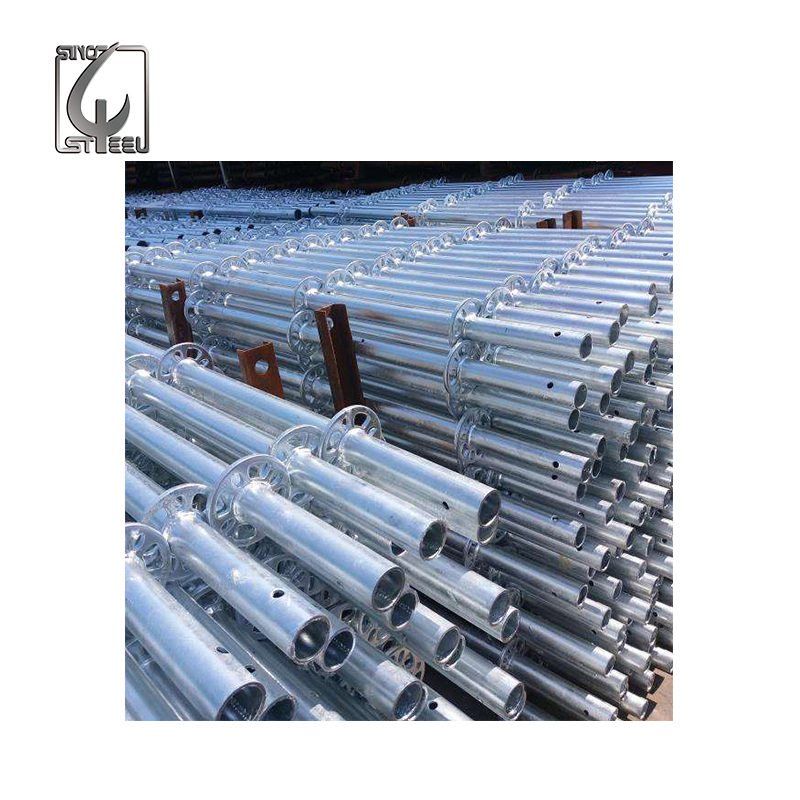

1.Steel Galvanized Ringlock Vertical Standard

Use: The vertical standard bears the loads from the scaffold down to the earth, providing vertical suppor tor the scaffolding.

The standard has rosettes at 50 cm interval, a spigot on the top and drilled holes at both end.

Item NumberLength(m)Diameter(mm)Tube Thickness(mm)Surface TreatmentProduct Material
SSC-R1S-20002

Hot dip galvanized/Powder coated
SSC-R1S-15001.548.33.2
SSC-R1S-10001

Q345/Q235
SSC-R1S-5000.5




2.Steel Galvanized Ringlock Horizontal Ledger

Use: The horizontal ledgers in several lengths are used as horizontal supports for loads and planks.

Ledgers are also used as guard rails.


Item NumberLength(m)Diameter(mm)Tube Thickness(mm)Surface TreatmentProduct Material
 SSC-R2L-3073.07

Hot dip galvanized/Powder coated
 SSC-R2L-2572.5748.33.2Q345/Q235
 SSC-R2L-2072.07


 SSC-R2L-1571.57


 SSC-R2L-1401.4


 SSC-R2L-1091.09


 SSC-R2L-0730.73




3.Steel Galvanized Ringlock Bay Brace

Use: Bay braces are used for lateral bracing, increasing stiffness of the scaffold.

Bay braces can also be used as guard rails in conjunction with the stair system.


Item NumberSize(mm)Diameter(mm)Tube Thickness(mm)Surface Treatment
SSC-R3D-3072.0*3.0748.32.5Hot dip galvanized/Powder coated
SSC-R3D-2572.0*2.57
SSC-R3D-2072.0*2.07
SSC-R3D-1572.0*1.57
SSC-R3D-1092.0*1.09
SSC-R3D-0732.0*0.73



4.Plank

Length(mm):1000/1200/1500/2000/2500/3000


5.Jack Base


base plate120*120*2.5mmscrew700*38mm
